KY TYPE 6, John Crane TYPE 6, Elastomer Bellow Shaft Seals
Combined Materials:
Stationary Ring (Ceramic/SiC/TC)
Rotary Ring (Carbon/SiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (Steel)
Working Conditions:
Mediums: Water, oil and weakly-corrosive mediums.
Temperature: -20°C~200°C
Pressure: ≤0.5Mpa
Speed: ≤ 12 m/Sec
Download the 2012 Mechanical Seals Catalogue, Seal Faces & Shaft Bushings Catalogue, and Armor Ceramic Tiles & Aromr Plates Catalogue.
If you have any questions please contact us at: E-Mail about your technical applications.

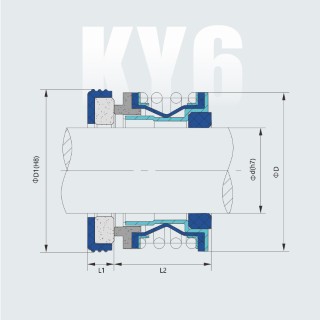

| Part Numbers | d | D | D1 | L1 | L2 |
| KY TYPE 6-3/8"A | 9.53 | 23.8 | 22.23 | 6.35 | 16.08 |
| KY TYPE 6-3/8" | 953 | 26.97 | 25.4 | 7.93 | 16.86 |
| KY TYPE 6-1/2"A | 12.7 | 26.97 | 25.4 | 6.35 | 16.86 |
| KY TYPE 6-1/2" | 12.7 | 26.97 | 254 | 7.93 | 16.86 |
| KY TYPE 6-5/8" | 15.88 | 30.94 | 31.75 | 10.31 | 18.44 |
| KY TYPE 6-3/4" | 19.05 | 34.11 | 34.93 | 10.31 | 18.44 |
| KY TYPE 6-7/8" | 22.23 | 42.85 | 41.28 | 11.1 | 20.82 |
| KY TYPE 6-1" | 25.4 | 42.85 | 41.28 | 11.1 | 20.82 |
