KY TYPE 70, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Pumps: Submersible pumps and common multi-stage deep well pumps.
Temperature: -20°C~110°C
Pressure: ≤0.8MPa
Speed: ≤ 10 m/Sec

Download KY TYPE 70, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

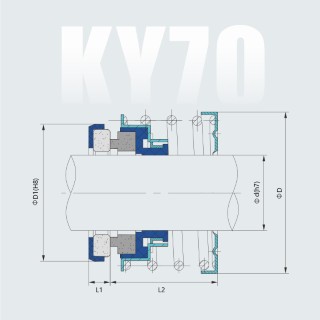

Part Numbers	d	D	D1	L1	L2
KY TYPE 70-15	15	31.5	29.5	8	18/24
KY TYPE 70-16	16	31.5	29.5	8	18/24
KY TYPE 70-20	20	37	35	5	15
KY TYPE 70-25	25	44.2	40	5.5	16.5
KY TYPE 70-30	30	48.6	45	6	18
KY TYPE 70-35	35	54	50	6.5	19.5
KY TYPE 70-40	40	60.4	58	7.5	20.5
