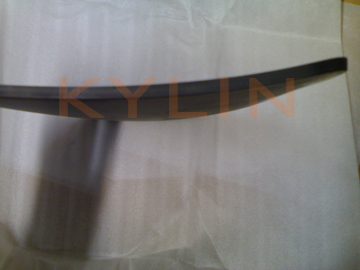

Armor Ceramic Tiles (Silicon Carbide (SiC / SSiC) & High Alumina Ceramic (99% Cer / 99.5% Cer)). We have various molds to meet your requirements, the shapes have hexagon, semi hexagon, rectangle, short corner, single curved and so on. Our largest size of Monolithic Single Curve plate is 250mm x 300mm. Manufacturing capacity (per annum) is 300-500 tons.
Hexagons made out of specific Silicon Carbide (RBSiC, SSiC) and Ceramic (99%, 99.5%) materials for ballistic body armor, ballistic vehicle armor, armor car, & aircraft armor, etc.
| AL2O3 Ceramic physical property | |||
| Technical Parameter | Unit | 99% | 99.5% |
| Content of Al2O3 | % | 99 | 99.5 |
| Density | g/cm3 | 3.88 | 3.9 |
| Hardness | HRA | 88 | 90 |
| Porosity Rate | % | <0.2 | <0.15 |
| Fractural Strength | Mpa | 310 | 350 |
| Coefficient of Heat Expansion | 10-6/K | 5.3 | 5.2 |
| Thermal Conductivity | W/M.K | 26.7 | 26 |
|
Silicon Carbide (SiC) physical property |
||||||
| Technical Parameter | Unit | RBSiC | SSiC | Sic+C | Ssic+C | Qssic+C |
| Hardness | HS | 110 | 115 | ≥105 | ≥110 | ≥100 |
| Porosity Rate | % | <0.3 | <0.2 | <0.5 | <0.5 | <5 |
| Density | g/cm3 | 3.00~3.05 | >3.10 | 2.69-2.90 | 2.70-3.0 | 2.65 |
| Compressive Strength | MPa | >2200 | >2500 | >1400 | >1600 | >800 |
| Fractural Strength | MPa | >350 | >380 | >150 | >160 | >100 |
| Coefficient of Heat Expansion | 10-6/°C | 4 | 4.2 | 3.50 | 3.00 | 2.50 |
| Content of Sic | % | ≥90 | ≥98 | ≥85 | ≥92 | ≥90 |
| Free Si | % | ≤10 | ≤1 | ≤12 | / | / |
| Elastic Modulus | GPa | ≥400 | ≥410 | ≥350 | ≥360 | ≥180 |
| Temperature | °C | 1300 | 1400 | 1300 | 1400 | 1400 |
Download the 2011 Mechanical Seals Catalogue, Seal Faces & Shaft Bushings Catalogue, and Armor Ceramic Tiles Catalogue.
If you have any questions please contact us at: E-Mail about your technical applications.
| Shapes | Specification Distance between parallel sides(mm) * Thickness(mm) |
| Hexagon | 14.2*2.6 |
| Hexagon | 20*13 |
| Hexagon | 27.7*6.2 |
| Hexagon | 30*3.5 |
| Hexagon | 30*3.9 |
| Hexagon | 30*4 |
| Hexagon | 30*4.1 |
| Hexagon | 30*4.2 |
| Hexagon | 30*5.1 |
| Hexagon | 30*6 |
| Hexagon | 30*7 |
| Hexagon | 30*8 |
| Hexagon | 30*9.1 |
| Hexagon | 30*10 |
| Hexagon | 30*10.5 |
| Hexagon | 83.14*5 |
| Hexagon | 83.14*6 |
| Hexagon | 83.14*6.2 |
| Hexagon | 83.14*6.5 |
| Hexagon | 83.14*8 |
| Hexagon | 83.14*8.2 |
| Hexagon | 83.14*10 |
| Hexagon | 83.14*10.2 |
| Hexagon | 83.14*10.5 |
| Hexagon | 83.14*12 |
| Hexagon | 83.14*15.5 |
| Hexagon | 83.14*16 |
| Hexagon | 83.14*16.2 |
| Hexagon | 83.14*18 |
| Hexagon | 83.14*18.2 |
| Hexagon | 83.14*20.2 |
| Shapes | Specification W(mm) * H(mm) * Thickness(mm) |
| Rectangle | 5*20*35 |
| Rectangle | 50*50*10.3 |
| Rectangle | 50*50*11 |
| Rectangle | 50*50*4 |
| Rectangle | 50*50*5 |
| Rectangle | 50*50*8 |
| Rectangle | 10*10*10 |
| Rectangle | 4*3*36 |
| Rectangle | 100*100*8 |
The common sizes we always have existing stocks. If the sizes you required are not in the list, please let us know, we can check if have existing molds or if can modify molds, we also can open new molds to produce according to your drawings, specifications or samples.
