KY TYPE 24, Vulcan TYPE 24, AES P02, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Ceramic/SiC/TC)
Rotary Ring (Carbon/SiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (Steel)

Working Conditions:
Mediums: Water, oil, and chemical mediums with weak corrosion.
Temperature: -20°C~150°C
Pressure: ≤0.8Mpa
Speed: ≤ 10 m/Sec

Download the 2012 Mechanical Seals Catalogue, Seal Faces & Shaft Bushings Catalogue, and Armor Ceramic Tiles & Aromr Plates Catalogue.

If you have any questions please contact us at: E-Mail about your technical applications.

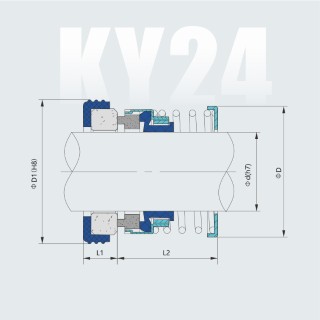

Part Numbers	d	D	D1	L1	L2
KY TYPE 24-12	12	21.7	23	8.6	24.1
KY TYPE 24-14	14	24.5	25	8.6	26.6
KY TYPE 24-16	16	26.65	27	8.6	26.6
KY TYPE 24-18	18	30.35	33	10	27.7
KY TYPE 24-20	20	33.4	35	10	27.7
KY TYPE 24-22	22	33.55	37	10	27.7
KY TYPE 24-24	24	38.3	39	10	30.2
KY TYPE 24-25	25	39.3	40	10	30.2
KY TYPE 24-28	28	42.2	43	10	32.7
KY TYPE 24-30	30	43.95	45	10	32.7
KY TYPE 24-32	32	45.75	48	10	32.7
KY TYPE 24-33	33	45.85	48	10	32.7
KY TYPE 24-35	35	49.1	50	10	32.7
KY TYPE 24-38	38	52.6	56	11	34.2
KY TYPE 24-40	40	55.7	58	11	34.2
KY TYPE 24-43	43	58.8	61	11	34.2
KY TYPE 24-45	45	61	63	11	34.2
KY TYPE 24-48	48	64.2	66	11	34.2
KY TYPE 24-50	50	66.6	70	13	34.7
KY TYPE 24-55	55	71.65	75	13	34.7
KY TYPE 24-58	58	78.4	78	13	39.7
KY TYPE 24-60	60	78.4	80	13	39.7
KY TYPE 24-63	63	81.5	83	13	39.7
KY TYPE 24-65	65	84.3	85	13	39.7
KY TYPE 24-68	68	89.65	90	15.3	37.4
KY TYPE 24-70	70	89.65	92	15.3	44.9
KY TYPE 24-75	75	96.8	97	15.3	44.9
