KY ED560, EKK ED560, Double Mechanical Seals
Combined Materials:
Stationary Ring (Ceramic/SiC/TC)
Rotary Ring (Carbon/SiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (Steel)
Working Conditions:
Pumps: Submersible pumps, sewage pumps. Applied to the muddy water, sewage water or weakly corrosive fluids with soild grains.
Temperature: -20°C~100°C
Pressure: ≤0.5Mpa
Speed: ≤ 8 m/Sec
Download the 2012 Mechanical Seals Catalogue, Seal Faces & Shaft Bushings Catalogue, and Armor Ceramic Tiles & Aromr Plates Catalogue.
If you have any questions please contact us at: E-Mail about your technical applications.

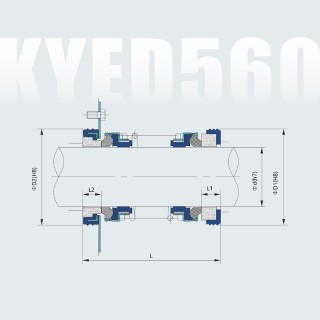

| Part Numbers | d | D1 | D2 | L | L1 | L2 |
| KY ED560-12 | 12 | 25 | 25 | 36 | 5 | 5 |
| KY ED560-13 | 13 | 25 | 25 | 36 | 5 | 5 |
| KY ED560-14 | 14 | 30 | 30 | 36 | 5 | 5 |
| KY ED560-15 | 15 | 30 | 30 | 36 | 5 | 5 |
| KY ED560-16 | 16 | 30 | 30 | 36 | 5 | 5 |
| KY ED560-18 | 18 | 35 | 38 | 49 | 7 | 7 |
| KY ED560-19 | 19 | 35 | 38 | 49 | 7 | 7 |
| KY ED560-20 | 20 | 38 | 44 | 49 | 7 | 7 |
| KY ED560-25 | 25 | 44 | 50 | 51 | 7 | 7 |
| KY ED560-30 | 30 | 50 | 57 | 59 | 9 | 8 |
| KY ED560-35 | 35 | 58 | 64 | 61 | 9 | 9 |
| KY ED560-40 | 40 | 64 | 70 | 64.5 | 11 | 9 |
| KY ED560-45 | 45 | 66 | 70 | 65 | 10 | 9 |
| KY ED560-50 | 50 | 72 | 80 | 69.5 | 10 | 9 |
